Product Description
The modular low-voltage load isolation switch can achieve different functions by mechanically adding various add-ons. It can be installed in a variety of ways to cope with different use cases. Through the above two points, it can provide solutions for many special occasions.

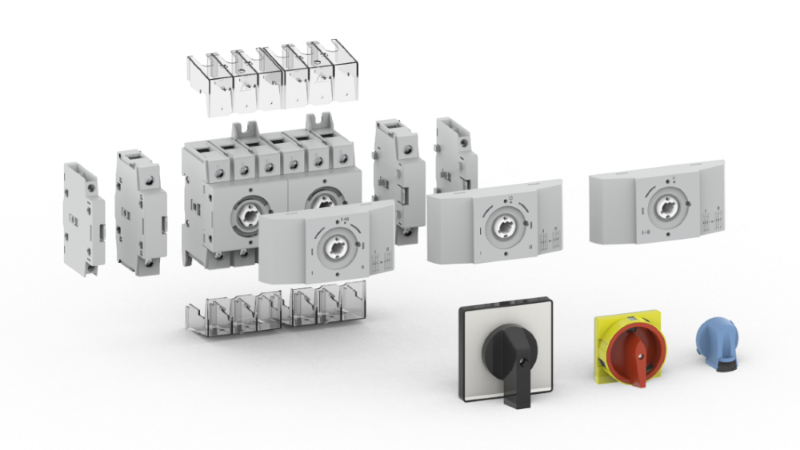

Optional add-ons
1. Add additional poles (there are 4 kinds of additional poles) to turn the 3P isolation switch into a multi-pole isolation switch.
2. Add auxiliary contacts (there are 3 kinds of auxiliary contacts), which can increase the function of pre-breaking and position indication.

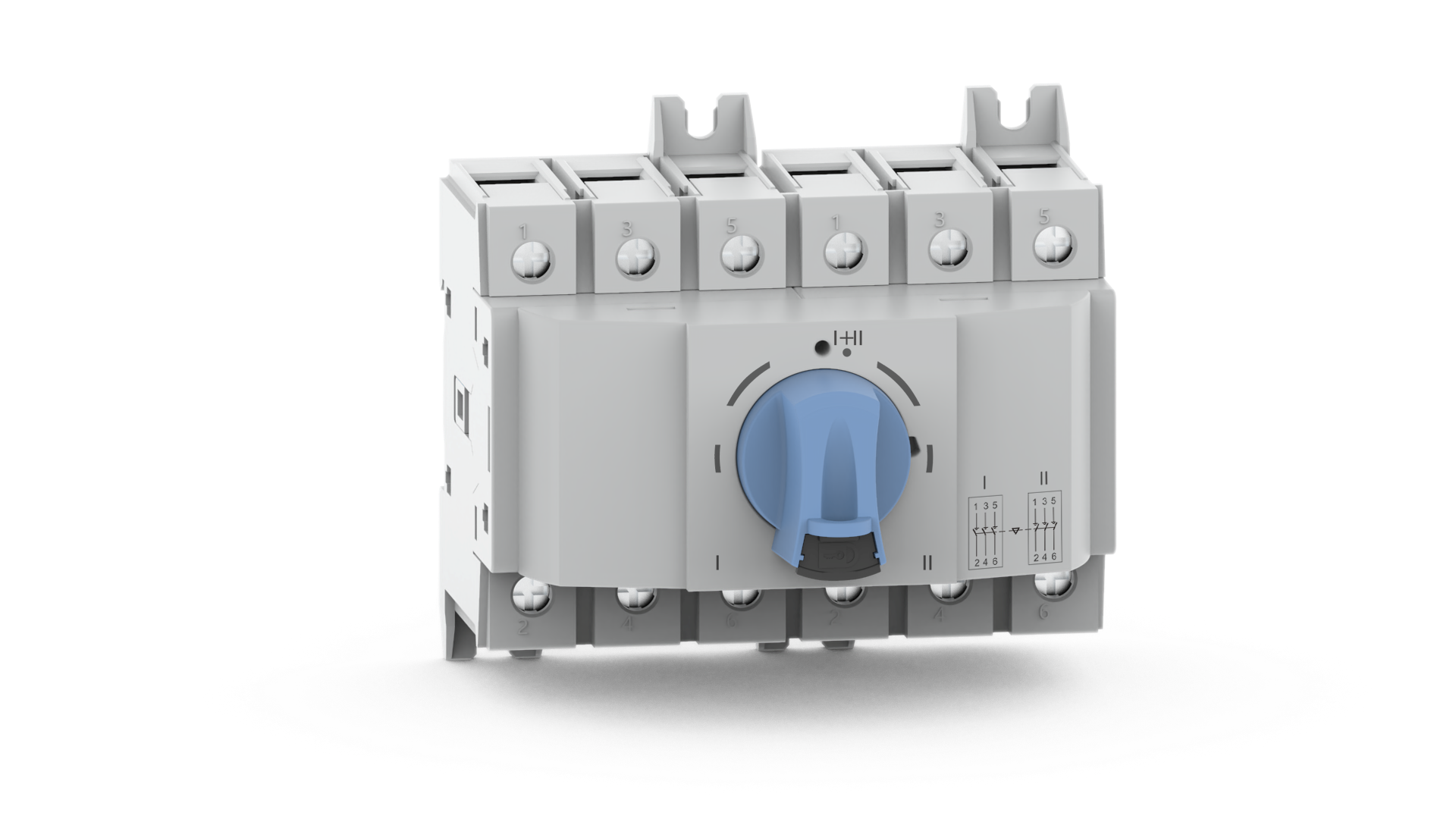

3. Use the conversion kit to convert two isolation switches into an isolation switch that can control two lines at the same time, or a  transfer switch.

Advantage
1. A simple mechanical combination of a standard 3-pole load isolator with optional add-ons can make dozens of products. It can provide solutions for a wide variety of special occasions without the need to develop an entirely new product for each special occasion. Thus greatly reducing the price of the product.
2. The product can be upgraded. In the future, when the product needs to add new functions, it only needs to develop new add-ons to upgrade into a new product.

3. This series of load isolation switch is designed, tested and verified according to the specifications defined by the standard IEC60947-3 and GB/T 14048.3-2017. This process guarantees a high level of product quality that can cope with a variety of challenging operating  environments.

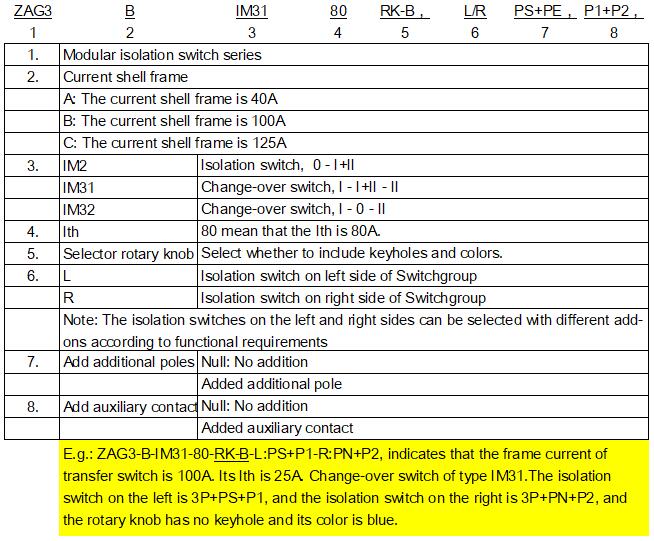

Naming rule

Technical specification

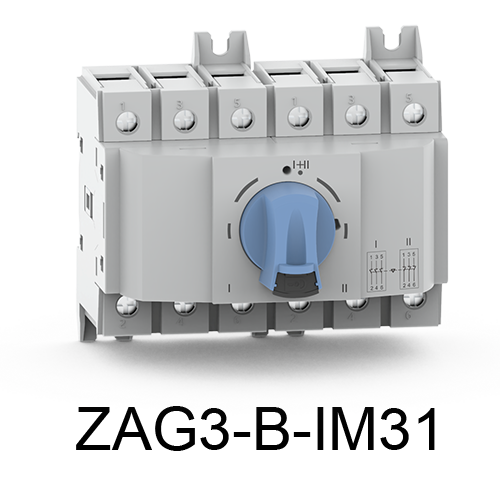

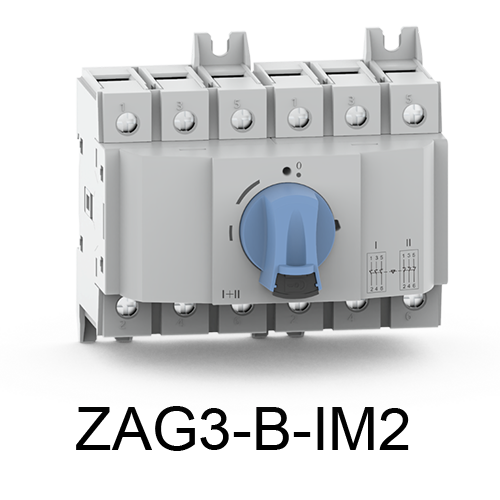

		ZAG3-B-IM2			ZAG3-B-IM31			ZAG3-B-IM32
Conventional heating current (Ith) 40℃		63A	80A	100A	63A	80A	100A	63A	80A	100A
Rated working current (In) AC-21A/B(≤690V)		63A/63A	80A/80A	100A/100A	63A/63A	80A/80A	100A/100A	63A/63A	80A/80A	100A/100A
Rated working current (In) AC-22A/B	415V
	500V
	690V	40A/63A	63A/80A	63A/80A	40A/63A	63A/80A	63A/80A	40A/63A	63A/80A	63A/80A
Rated working current (In) AC-23A/B	415V	63A/63A	80A/80A	100A/100A	63A/63A	80A/80A	100A/100A	63A/63A	80A/80A	100A/100A
	500V	63A/63A			63A/63A			63A/63A
	690V	40A/40A			40A/40A			40A/40A
Rated working current (In) DC-21B	110V  DC	63A	80A	100A	63A	80A	100A	63A	80A	100A
	250V  DC
	400V  DC	40A			40A			40A
Rated working power (three-phase) AC-23A/B	415V	30KW	37KW	45KW	30KW	37KW	45KW	30KW	37KW	45KW
	500V
	690V
Short-circuit withstand current for fuse protection (kA rms expected value)
Fuse specifications (A)	415V	63A	80A	100A	63A	80A	100A	63A	80A	100A
Rated limited short circuit current (kA)	415V	50KA
Short-circuit withstand current of the circuit breaker for protection (this circuit breaker ensures trip within 0.3s)
Rated short-time withstand current 0.3s.Icw		3KA
Short-circuit performance (no protection)
Rated short-time withstand current 1s.Icw		1.5KA
Rated short-circuit closing capacity Icm (kA peak)		2.1KA
Terminal cross-sectional area (mm2)		2.5~35mm²
Rated insulation voltage Ui (V)		1000V
Rated impulse withstand voltage Uimp (kV)		12kV
Mechanical life (number of operations)		100000
Ambient temperature		Operating temperature: -25~+55℃          Storage temperature: -40~+70℃
Note: A/B,A: frequent operation; B: Infrequent operation

Dimension figure

ZAG3-B

Mounting type
DIN-Rail Mounting
