Suitable for various brands of 1-10HP duct air conditioner, ceiling air conditioner, VRF air conditioner etc.
Type
BBH-02
Voltage
220V 50Hz
Automatic
Water tank capacity
500mL
Non-interworking with air conditioner
Max. lift
0.7m
Suitable for various brands of 1-10HP duct air conditioner, ceiling air conditioner, VRF air conditioner etc.
Advantage
1. ABS Environmental protection material;
2. Low noise and no vibration;
3. Energy-saving and environmentally friendly design;
4. Large discharge capacity is suitable for all kinds of air conditioners;
5. Independent dual control lines for increased security.
Installer
1. Cut off the power;
2. Secure the drainage pump and ensure that the water tank is in a horizontal position;
3. Insert the drain pipe of the air conditioner into one of the two water inlets of the drainage pump;
4. According to the position of the drain, connect a pipe of appropriate length (6mmx9mm or 9mmx12mm) to the drain joint of the drainage pump and tie it tightly with a cable tie;

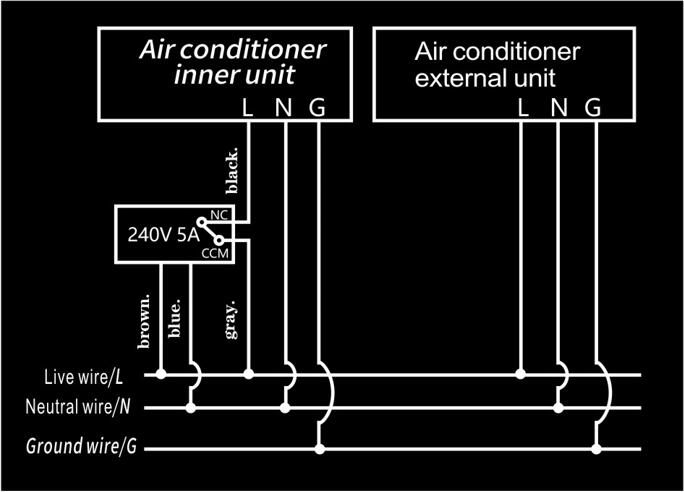

5. Ensure that the voltage used is in accordance with the product identification. Connect the two-core power cord marked "Power Cord" to the air conditioner or socket, and pay attention to the color of the cable;
6. After the power supply is connected correctly, ensure that the drainage pump is energized, run the air conditioner, and observe whether the drainage pump works normally or not;
7. When the buzzer of the drainage pump alarms, it means that the drainage pump has failed, please contact the qualified maintenance personnel for debugging.
Safety matters
1. Before doing anything with the drainage pump, make sure the power supply is cut off;
2. The drainage pump must be used with water on it, Do not run it without water;
3. To prevent electric shock, the drainage pump is forbidden to be used in swimming pools or immersed in water;
4. If the power cord is damaged, please contact the manufacturer or the designated after-sales service to replace the dedicated power cord;
5. The drainage pump can be used in most working and living environments, but it is not recommended to be used in greasy or dirty environments;
6. The drainage pump is only suitable for indoor usage;
7. The drainage pump cannot be used as a submersible pump.
warn
Please distinguish between power cables and signal cables. Incorrect wiring can cause damage to the drainage pump and ensure that the voltage is consistent with the one mentioned on the product label.
Warranty
Faults caused by defective materials or manufacturing problems are covered by the warranty. During the warranty period, the seller repair or replace the defective product.
The product returned by the buyer must be in its entirety. Failures caused by non-compliance with the instructions are not in the scope of warranty.
Debugging
Faults
Reason
Solution
The drainage pump keeps working, and not stop.
There is some sludge or other dirties inside the tank, which hinder the sinking of the mechanical float.
Clear the inside of the tank and the surface of the probe in time.
The drainage pump makes obvious noise when it starts working.
The water in the pump creates a siphoning effect.
Prevent air entry during installation and operation.
The drainage pump cannot be started.
The pump cannot be started.
Check the power supply is properly plugged in.
Wrong wiring.
Check the corresponding wires are connected correctly.
Wrong voltage.
Check the line voltage is correct or not.
Note
Proper usage and maintenance can improve the working life of the product, it is recommended to check the air conditioning drainage pump and clean the tank against the change of seasons or for the successive year’s usage!
For the connection of the passive protection signal line of the drain pump, contact a professional for installation in special cases.
