5/8 copper ground rod_Yueqing Hekao Electric Co., Ltd.

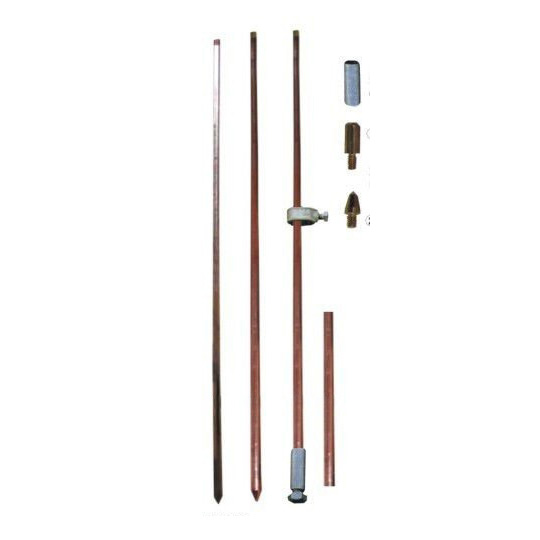

Copper clad steel ground rod 1/2'' 5/8'' 3/4'' earth rod

Category：Copper rod /brass rod

Favourite

Detail

Specifications

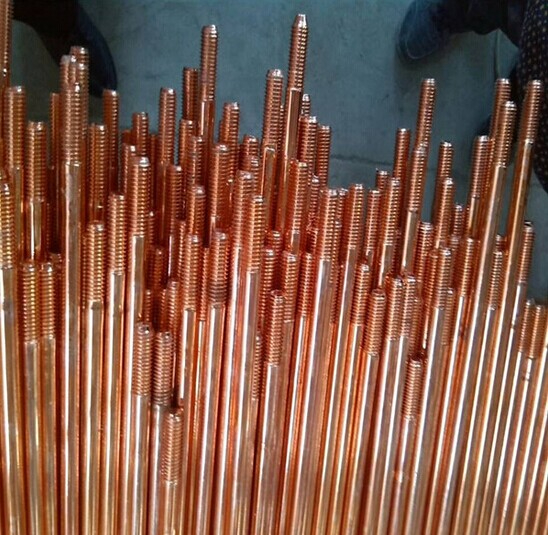

1.threaded copper ground rod
2.ISO9001:2008 quality control
3.copper thickness 0.254mm
4.Delivery time 15days

Copper Bonded Ground Rods are made of high-quality Steel core coved with 99.9% electrolytic copper molecular. The thickness of surface copper plated layer is 0.25mm. Molecular bond with steel core surface is formed by electroforming process, which is highly conglutinated (tight bond and have rolled screw thread).
Steel cores are required diameters rods with tensile strength being as high as 600N/mm2 so that earth rods can easily get to deep underground by impact. It is ensured that earth rod can be used at least fifty years.

And the 5/8 inch ground rod, 3/4 inch ground rod were very popular by all of the world.

Diameter		Length			Copper Thickness		N.W.	Packing
Normal Dia.	Actual Dia.(mm)	inch		mm	mil	mm	kgs/pc	pc/bundle
5/8	14.2		4	1200	10	0.254	1.53	20
5/8	14.2		6	1800	10	0.254	1.88	20
5/8	14.2		8	2500	10	0.254	3.10	10
5/8	14.2		10	3000	10	0.254	3.72	10
	16		5	1500	10	0.254	2.37	10
	16		8	2500	10	0.254	3.95	10
	16		10	3000	10	0.254	4.74	10
3/4	17.2		5	1500	10	0.254	2.73	10
3/4	17.2		8	2500	10	0.254	4.55	10
3/4	17.2		10	3000	10	0.254	5.46	10
	18		8	2500	10	0.254	5.00	10
	18		10	3000	10	0.254	6.00	10
	20		5	1500	10	0.254	3.69	10
	20		8	2500	10	0.254	6.15	10
	20		10	3000	10	0.254	7.38	10
	22		5	1500	10	0.254	4.47	8
	25		5	1500	10	0.254	5.58	10
	25		8	2500	10	0.254	9.63	5
	25		10	3000	10	0.254	11.55	5
