Summary

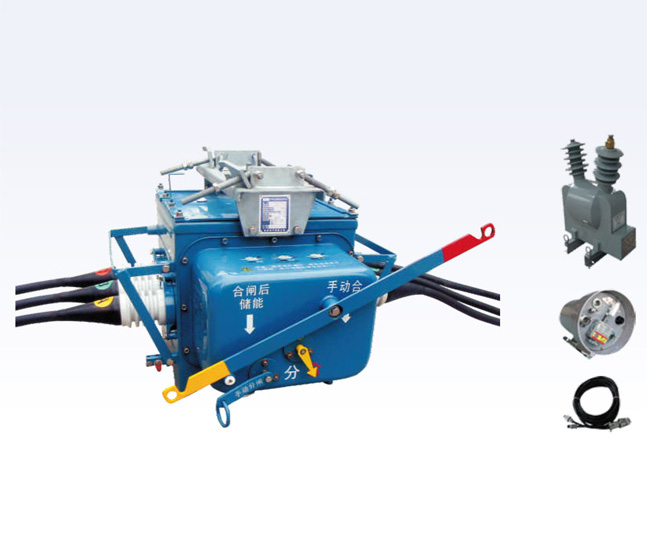

FZW28-12F(FFK) outdoor HV AC vacuum load break switch type sectionalizer is for pole-mounting installation, and has manual and
electric operation functions. The sectionalizer adopts FZW28-12 type of free-of-maintainance load break switch as its main body which
uses vacuum arc-extinguishing and SF6 gas as the insulation mediums to earth and between phases. The switch is composed of
FZW28-12 vacuum LBS and controller. It has the functions of fault detection, protection & control and communication. Installed on the
overhead line of voltage l0kv, it can remove automatically the single-phase grounding fault and short-circuit fault between phases. The
installation position can be the duty boundary site of 10kV distribution user incoming line or the T branch line junction which conforms to
requirements. The switch can not be for the use of series connection. The product conforms to the standards of IEC62271-100 &
GB1984: AC high voltage circuit breaker, IEC60694 & GB/T11022: HV general technical requirement of switch and control apparatus.
Ambient conditions
1. Altitude: ≤3000m;
2. Ambient temperature: -30℃~+40℃;diurnal temperature rang ≤25℃;
3. Wind speed: ≤35m/s
4. Earthquake intensity: ≤grade 8;
5. Relative humidity: monthly average ≤90%; daily average ≤95%. Dew may be condensed in the interior of the tank body when high
humidity drop rapidly;
6. Ice thickness: ≤10mm
7. Pollution degree: ≤Ⅳ(GB5582);
8. Applicable occasions: no fire and explosion danger, no chemical corrosion and no frequent severe vibration
9. Neutral grounding mode: neutral non grounding, neutral grounding via arc-extinguishing coil, neutral grounding via low-resistance.

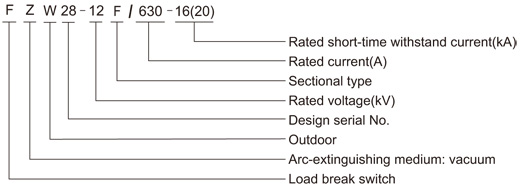

Model
Technical specification
Rated technical parameters for switch
Item |
Unit |
Data |
Rated voltage |
kV |
12 |
Rated insulation level |
1min P.F withstand voltage (phase to phase, phase to
earth/across open contacts) |
kV |
Dry test |
42/48 |
Wet test |
34 |
Lightning impulse withstand voltage
(phase to phase, phase to earth/across open contacts) |
kV |
75/85 |
Rated frequency |
Hz |
50/60 |
Rated current |
A |
630 |
Rated short-time withstand current/ rated short-circuit duration |
kA/4s |
16 |
20 |
Rated peak withstand current(peak) |
kA |
40 |
50 |
Rated short-circuit making current |
40 |
50 |
Mechanical life |
次 |
10000 |
Net weight |
kg |
185 |
|
Note:1. The insulation withstand voltage should be amended accordingly if the altitude of the procuct’s using site is higher than 1000m;
2. Do not make the insulation between phases when PT is built in the switch.
Parameter table for control device
No. |
Item |
Rated value |
Remarks |
1 |
Input operating voltage |
AC 220V |
12 |
Output voltage(open-operating) |
AC 220V / DC 48V |
630 |
2 |
Input operating voltage frequency |
50Hz |
42 |
3 |
Allowed fluctuating range for input operating voltage |
±20% |
34 |
4 |
Overall unit’s power consumption |
<10W |
75 |
5 |
Sampling phase current input value |
120~600A(primary value) |
50 |
6 |
Low voltage action value |
10~140V(secondary value) |
16 |
7 |
Allowed sampling error for input power value |
±5% |
O-0.3s-CO-180s-CO |
8 |
Delaying time value of over-current protecting action |
0.3~1s(can not be set) |
30 |
9 |
Zero-sequence current setting value |
0.2~60A(primary value) |
40 |
10 |
Earthing action delaying time |
0~1800s |
40 |
|
Main function features
1. Function of zero-sequence protection: After detecting the line zero-sequence earthing fault, the switch will take the action and open
automatically within the delay time set by the controller.
2. Protection of short-circuit between phases: When short-circuit fault between phases occurs in the line, the boundary switch will open
immediately once the substation open to isolate the fault area.
3. Users’load monitoring: Users’load monitoring can be realized after through controller and communication system after the switch is built
in a metering CT.
4. Wireless protection: The embedded GPRS communication module which supports GPS communication can realize the function of “four
remote”.

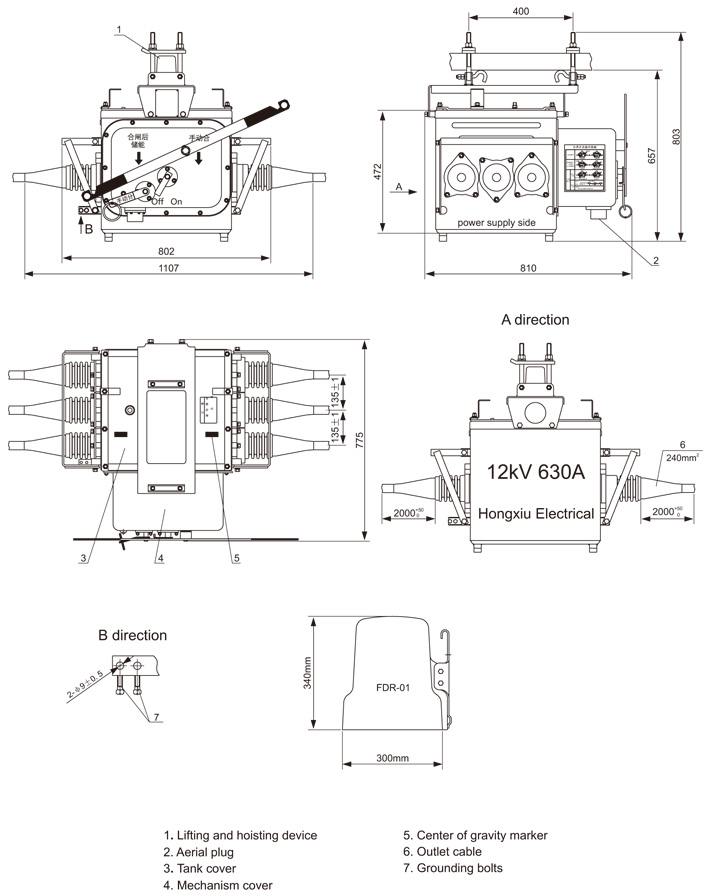

Outline and installation dimension
