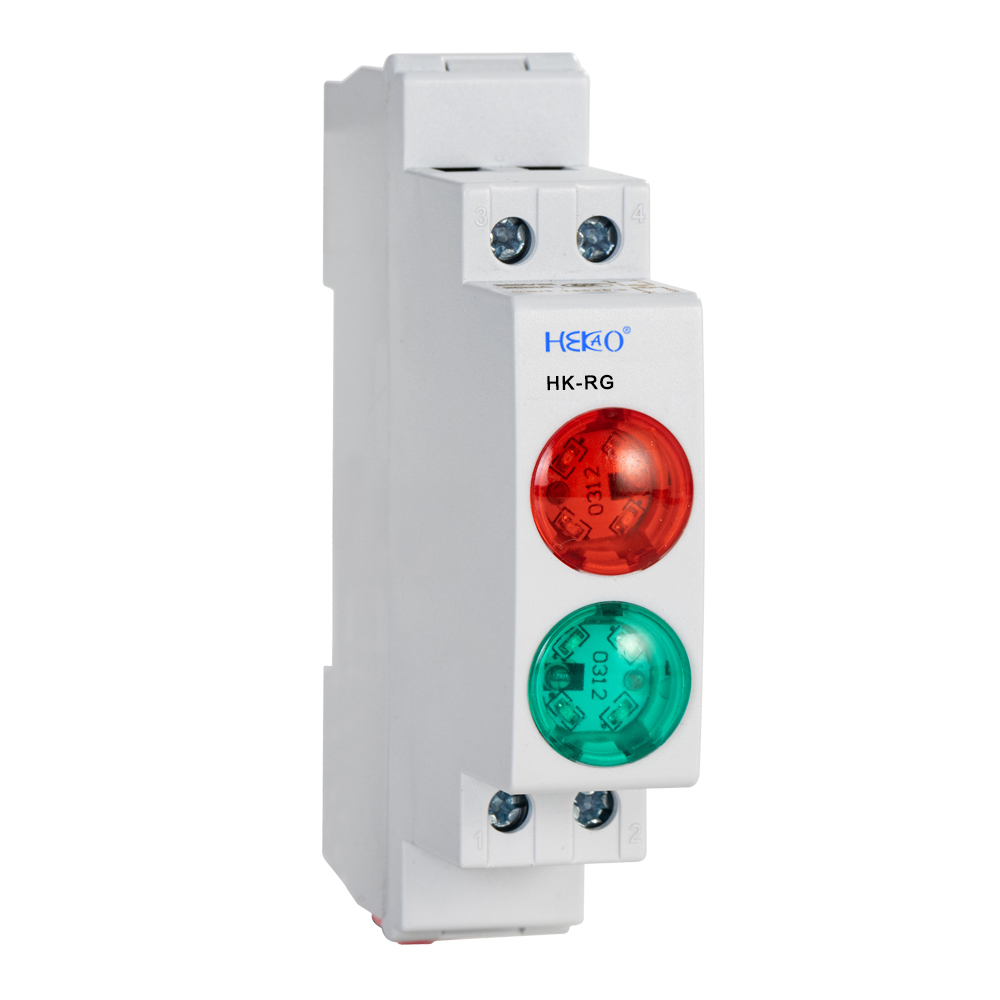

The indicators of the HK series are suitable for 50Hz/60Hz AC and DC circuit control systems. In telecommunications, electrical and other lines, it is used for indication signals, preset signals, accident signals and other indications.
The color of the indicator. Select the color of each indicator.
G=green, R=red, Y=yellow, B=blue, W=white
GR=green+red, ……
4.
Rated working voltage
6.3=6.3V, 12=12V, 24=24V, 110=110V, 230=230V
Product working environment
1. Ambient temperature: -5℃~+40℃. The average temperature in a 24-hour period does not exceed 35℃.
2. Altitude: ≤ 2000m.
3. Installation category: Class Ⅱand Ⅲ.
4. Pollution level: Level 2.
Precautions for use
1. The rated voltage of the indicator must meet the requirements of use.
2. When installing, the wire must be tightened, not loose and out, and the copper wire must not be exposed outside the terminal.
3. The indicator light shall not be eroded by rain during use, storage, transportation, etc
