Naming Rule
Technical specification
|
Model
|
L×W×H ( mm )
|
The scope of application
|
Note
|
|

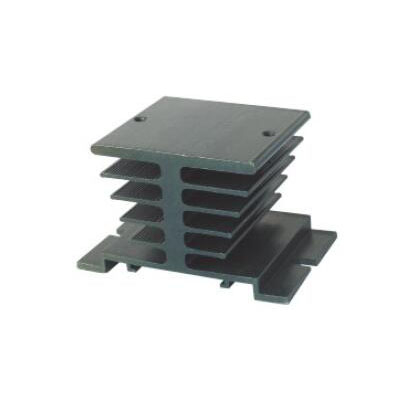

PK-I-50
|
50×60×50
|
One
single-phase SSR with actual load current no more than 15A.
|
|
|

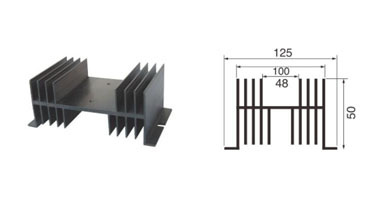

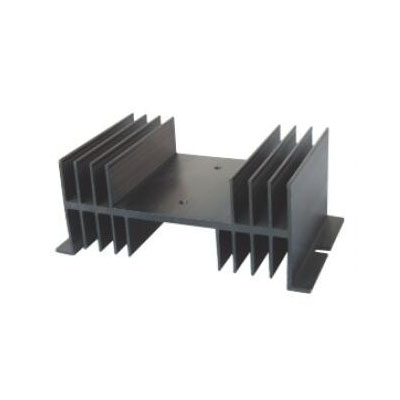

PK-W-70
|
70×125×50
|
One
single-phase SSR with actual load current no more than 20A.
|
|
|
PK-W-100
|
100×125×50
|
One
single-phase SSR with actual load current no more than 26A.
|
|
|

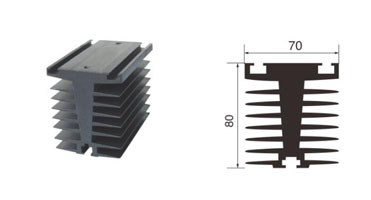

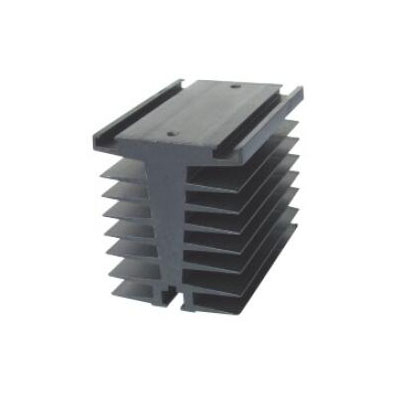

PK-T-80
|
80×70×80
|
One
single-phase SSR or industrial grade SSR, with actual load current no more
than 26A.
|
|
|
PK-T-110
|
110×70×80
|
One
single-phase SSR or industrial grade SSR, with actual load current no more
than 33A.
|
|
|

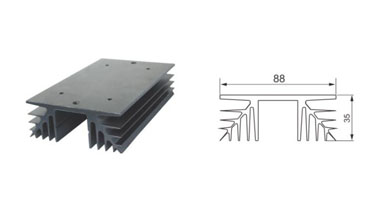

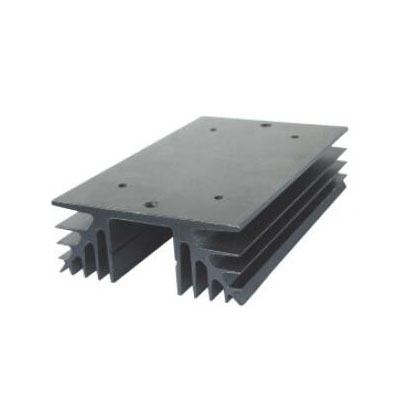

PK-L-150
|
150×88×35
|
1.
One three-phase SSR with a total three-phase current of not more than
20A.
2. One single-phase SSR with actual load current no more than 26A.
|
|
|

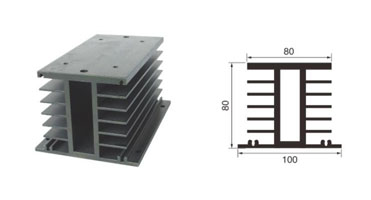

PK-H-150
|
150×80×80
|
1.
One three-phase SSR with a total three-phase current of not more than
75A.
2. One single-phase SSR with actual load current no more than 35A.
|
Cooling
fan can be installed. Fan dimensions: (L x W x H) 32mm x 92mm x 92mm.
|
|

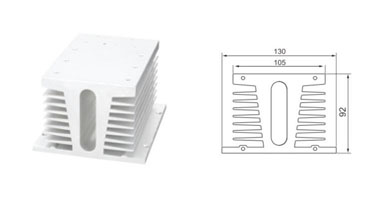

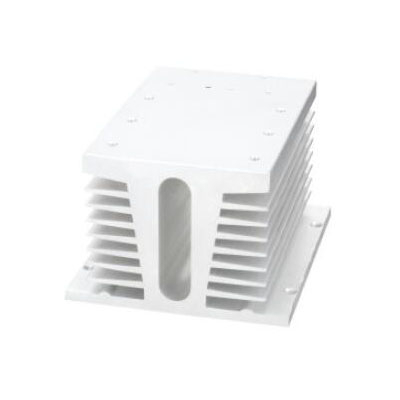

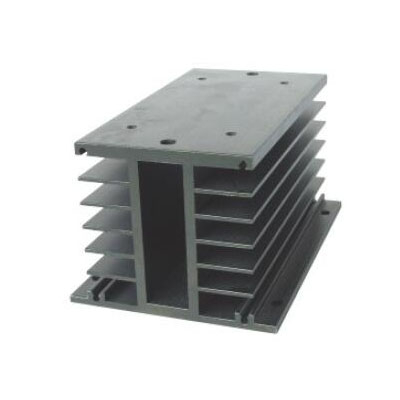

PK-X-120
|
120×105×93
|
1.
One three-phase SSR with a total three-phase current of not more than
120A.
2. One single-phase SSR with actual load current no more than 120A.
|
Cooling
fan can be installed. Fan dimensions: (L x W x H) 32mm x 92mm x 92mm.
|
|

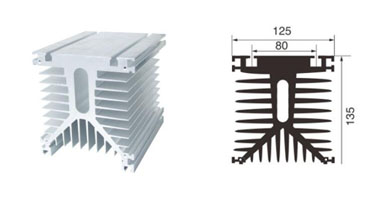

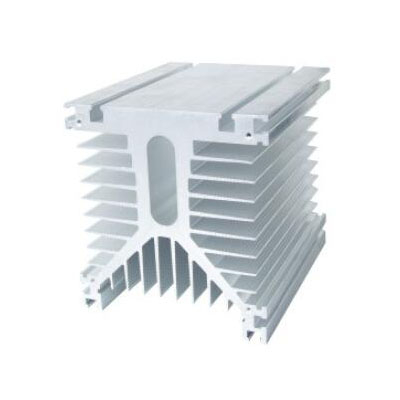

PK-Y-150
|
150×125×135
|
1.
One three-phase SSR with a total three-phase current of not more than 150A.
2. One single-phase SSR with actual load current no more than 150A.
|
Cooling
fan can be installed. Fan dimensions: (L x W x H) 45mm x 120mm x 120mm.
|
Notes :
1. The load current is 10A, must be equipped with radiator. The load current is 40A or higher, fan or water cooling must be configured.
2. The load is inductive load, it is necessary to parallel a varistor at the output end, its value is 1.6-1.9 times the load voltage.

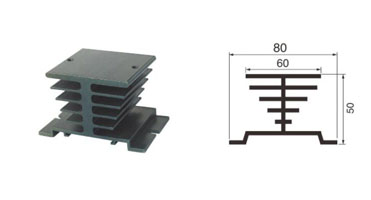

Dimension figure
