Naming Rule
The difference between zero-crossing SSR and random SSR
When an effective control signal is applied to the input end, the output end of the random SSR is immediately switched on (the speed is microsecond), while the zero-crossing SSR is switched on only when the load voltage crosses the zero region (about ±15V). When the control signal is withdrawn at the input end, both the zero-crossing type and random type SSR are turned off when the current is less than the maintenance current.
The reaction speed of the SSR is fast, the phase-shift trigger pulse can be controlled, and the voltage of the AC network can be easily changed, so that it can be applied to the precise temperature adjustment, dimming and other resistive loads and some inductive loads.
The zero-crossing SSR causes a maximum delay of half a cycle, but it reduces the impact on the load and generates RF interference. Therefore, it is most widely used in the "single-pole single-throw" switch.
Technical specification
|
|
SSR-□AA
|
SSR-□AA-H
|
|
Load current
|
10A, 25A, 40A, 50A, 60A, 75A, 90A, 100A
|
|
Load voltage
|
24-380 VAC
|
90-480 VAC
|
|
Control voltage
|
80-250 VAC
|
|
Control current
|
AC ≤12 Ma
|
|
On-state voltage drop
|
≤1.5 V
|
|
Leakage current in OFF state
|
≤4 mA
|
≤2 mA
|
|
ON/OFF time delay
|
≤10 mS
|
|
Dielectric strength
|
≥ 2500 VAC
|
|
Insulation strength
|
1000 MΩ/500 VDC
|
|
Operating temperature
|
-30~+75℃
|
|
Mounting
|
With screws on a plate
|
|
Indication
|
LED
|
|
Weight
|
132g
|
□ is the number of load currents. For example, for model SSR-10AA, the □ is replaced by 10, indicating that the load current of model SSR-□AA is 10A.
Notes :
1. The load current is 10A, must be equipped with radiator. The load current is 40A or higher, fan or water cooling must be configured.
2. The load is inductive load, it is necessary to parallel a varistor at the output end, its value is 1.6-1.9 times the load voltage.

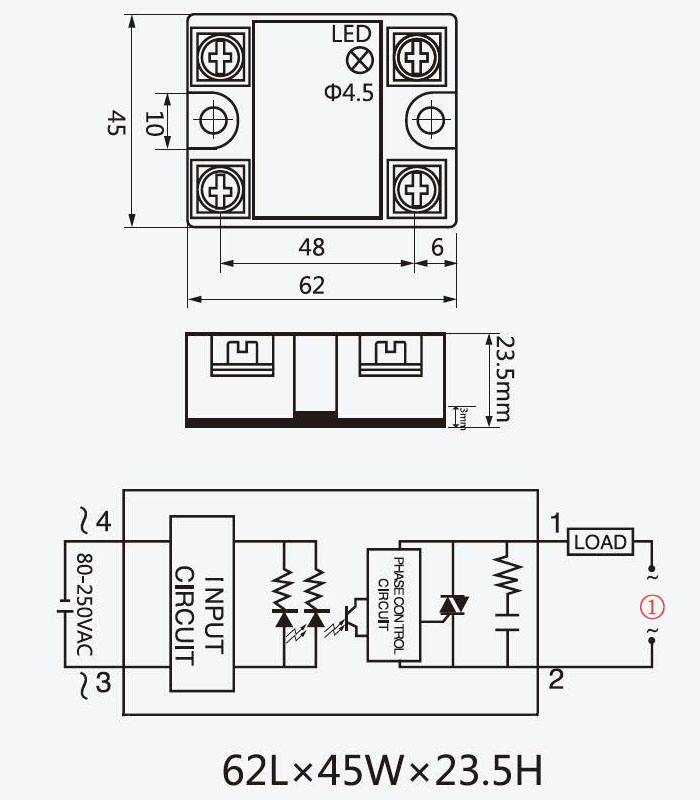

Dimension figure and wiring diagram
①=24-380VAC: SSR-□AA
①=90-480VAC: SSR-□AA-H
Product Features
1. Long life and high reliability;
2. Good sensitivity, small control power, good electromagnetic compatibility;
3. Quick conversion;
4. Small electromagnetic interference.
5. Input current is small
6. No noise.
Product application
The products can be used in computer peripheral interface equipment, electric furnace heating, constant temperature equipment, CNC machinery, industrial automation equipment, signal lamp, stage lighting control equipment instrumentation, medical equipment, copier, plastic machinery, air conditioning, washing machine. In addition, it is widely used in chemical industry, coal mine and other explosion-proof, moisture-proof, anti-corrosion occasions, so it is an ideal product to replace electromagnetic relays and AC contactors.
