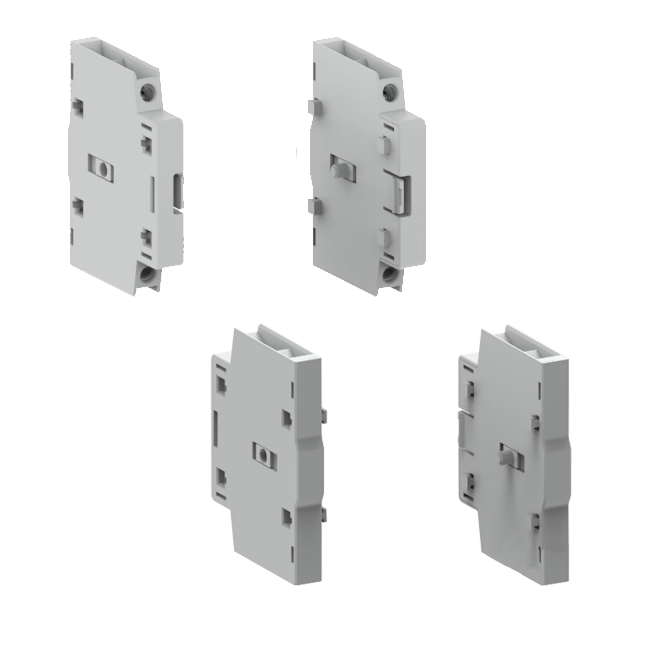

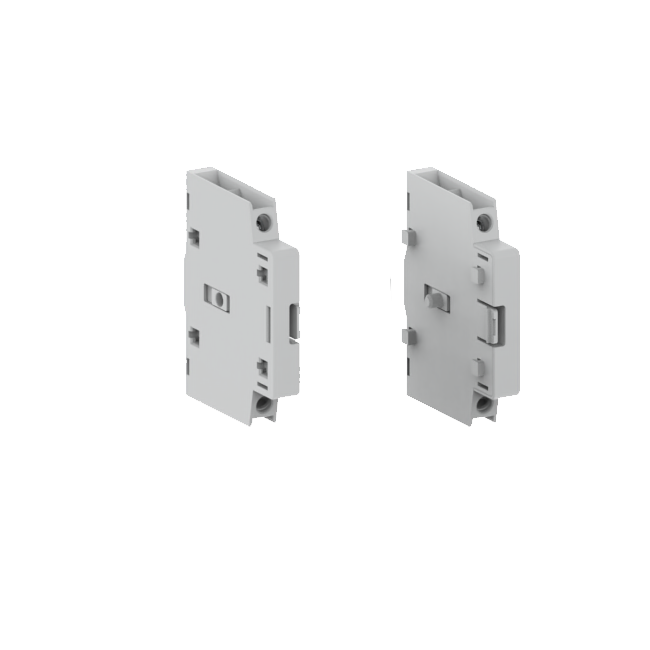

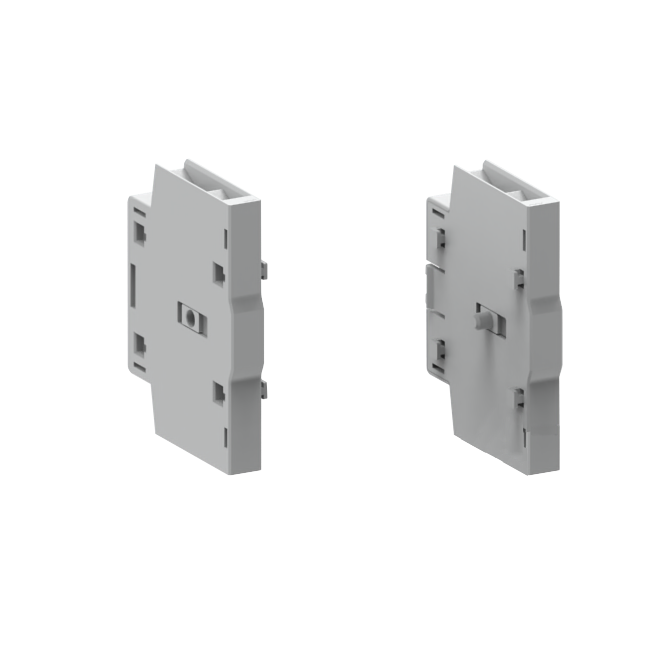

Auxiliary contacts

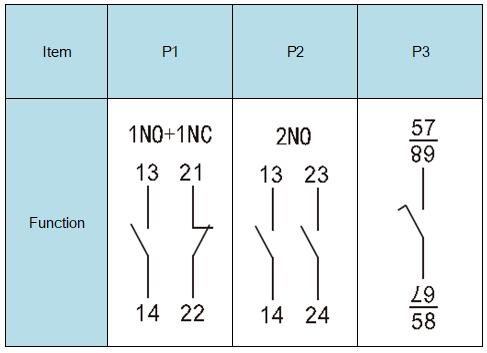

There are three types of auxiliary contacts:
P1: 1NO+1NC
P2: 2NO
P3: Precut-off
Auxiliary contacts can provide pre-breaking and position indication functions.

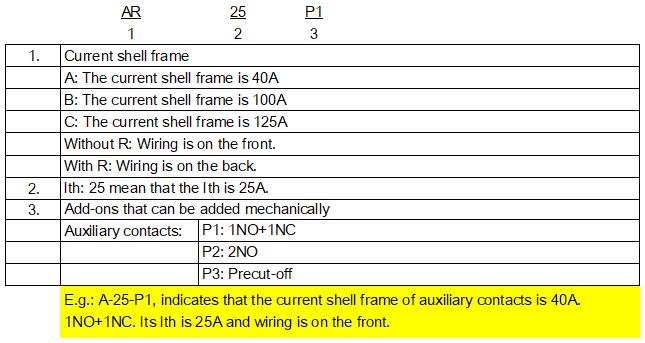

Naming rule

Technical specification

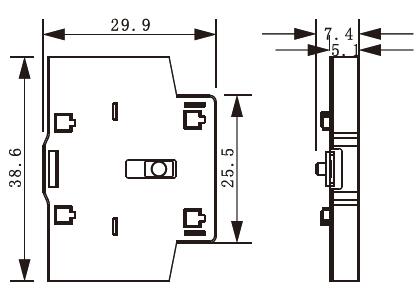

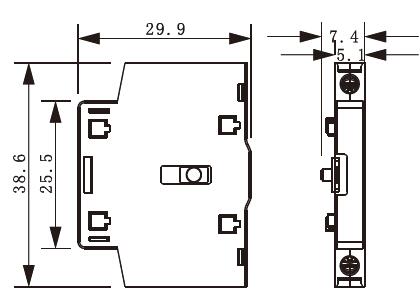

Dimension figure

                            B-63~100-P1P2/P3                                                                       BR-63~100-P1/P2/P3
