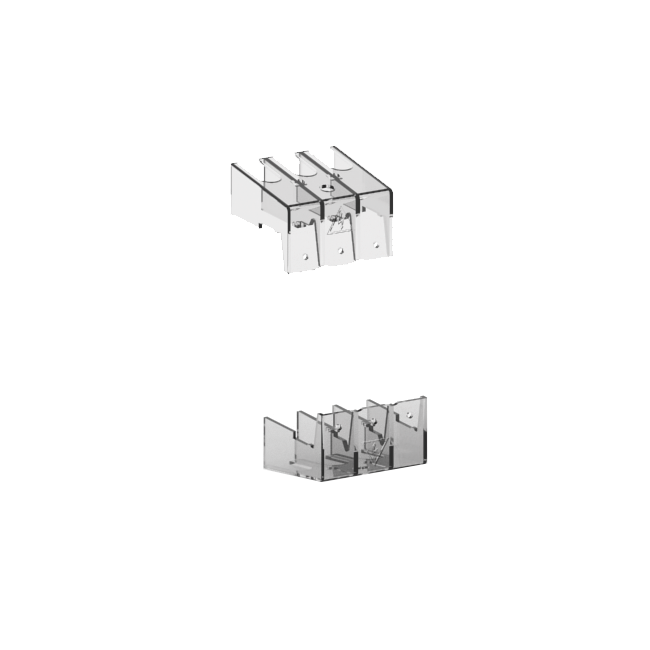

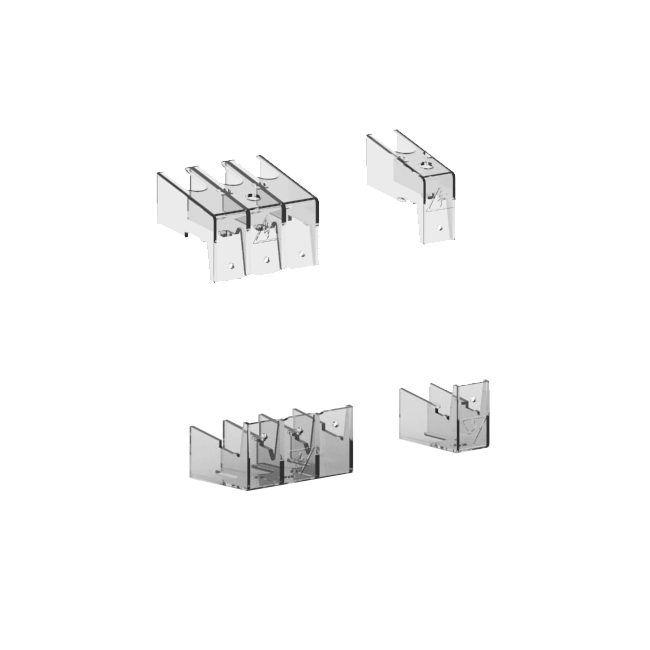

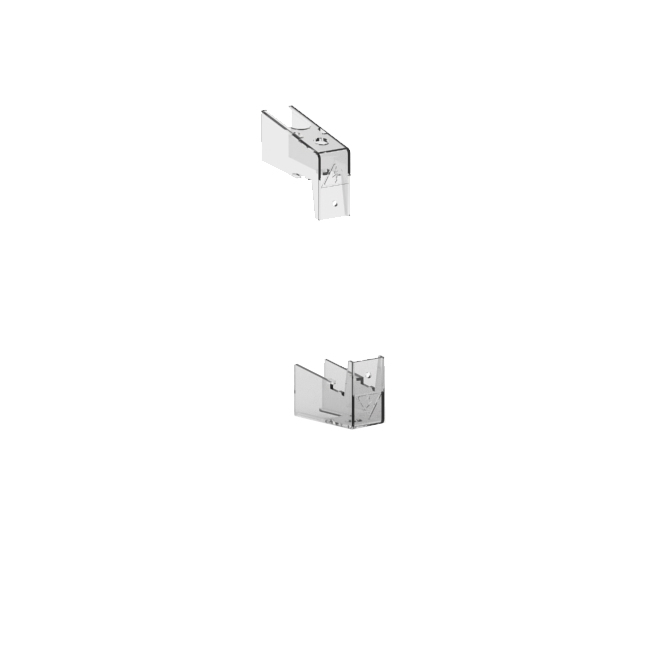

Terminal shrouds
Terminal shields are required at both the incoming and outgoing ends. It protects the terminal and can also protect people from accidents when they touch the terminal by mistake.
The terminal shields are perforated for remote thermal image monitoring.

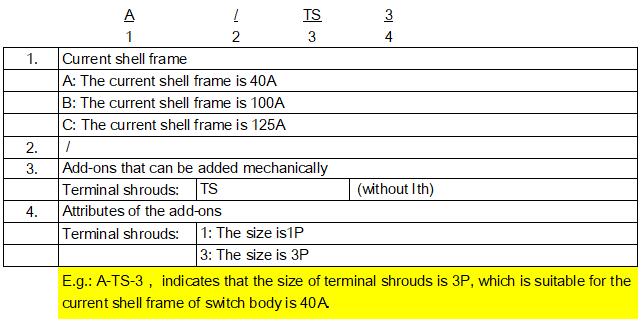

Naming rule

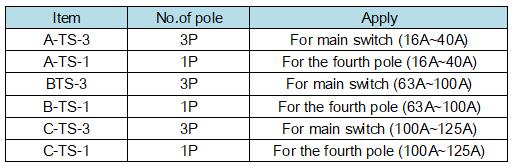

Technical specification

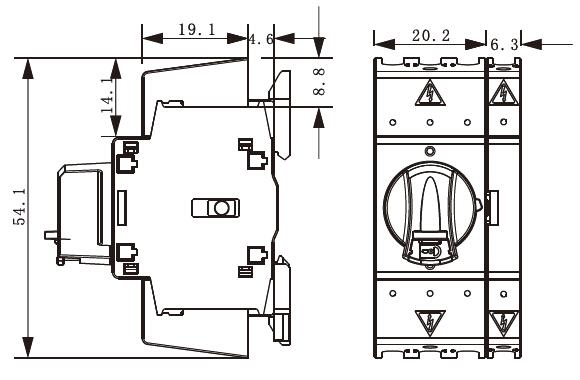

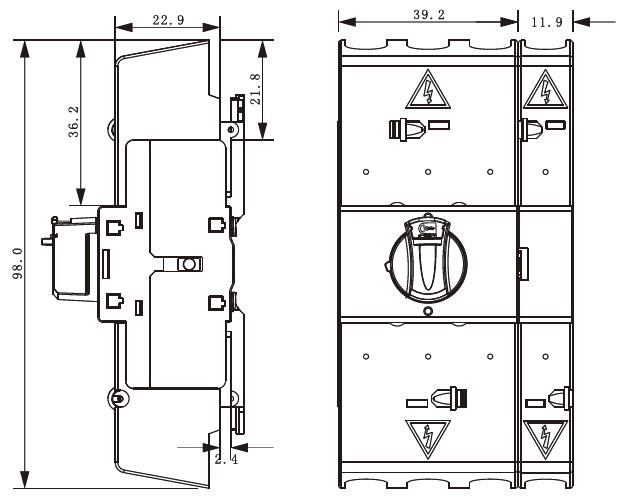

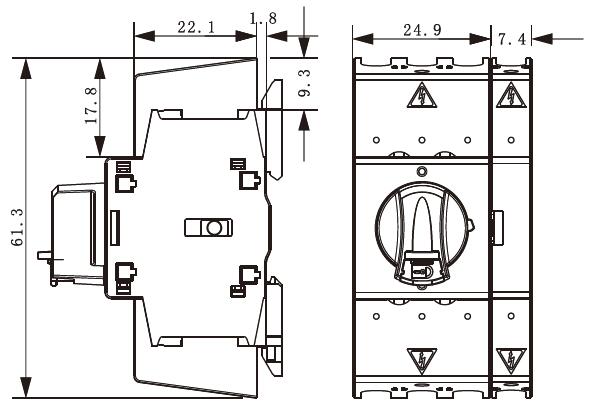

Dimension figure

                                                                                    A-TS-3/1

                                                                                    B-TS-3/1

                                                                                          C-TS-3/1
