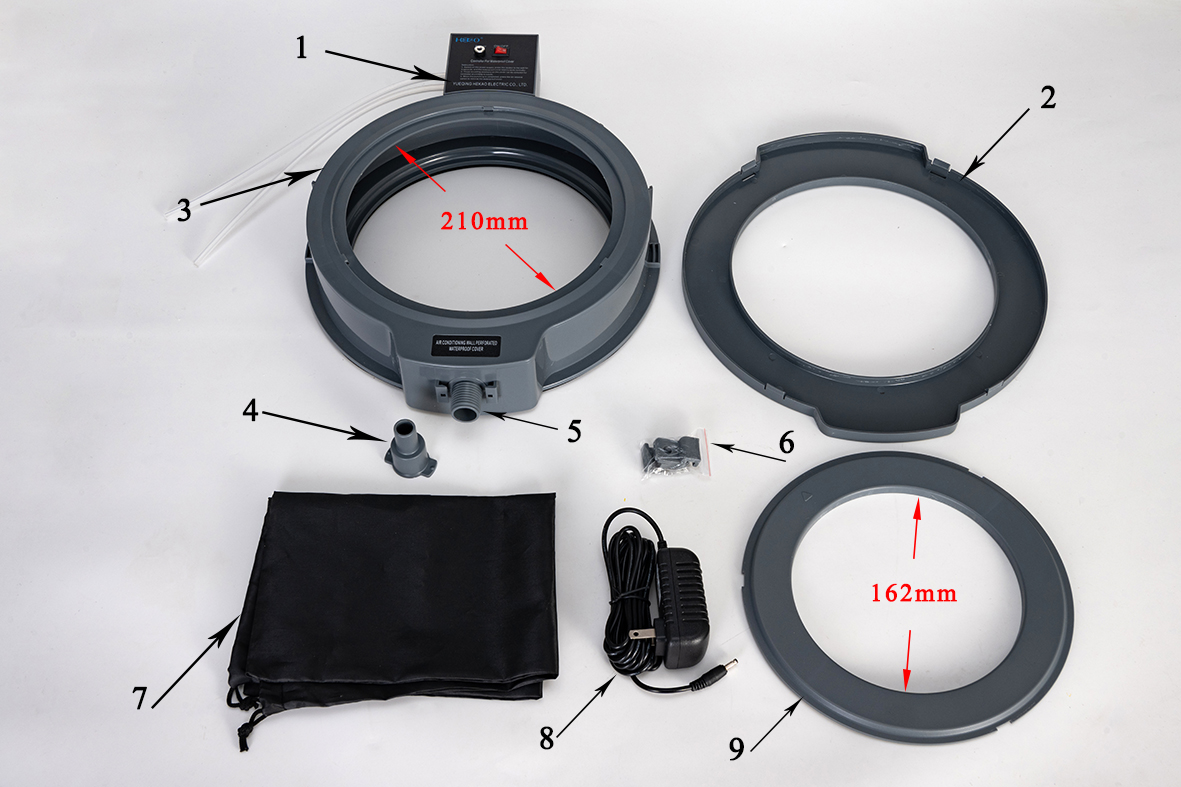

2.bottom protective cover
3.main body
4.water outlet connector,15/25mm
5.water outlet, Φ25mm
6.fixing clips
7.storage bag
8.charger
9.diameter changeover cover, 162mm
Components of the product
Main body, controller, charger, bottom protective cover, storage bag, 162mm diameter changeover cover, 15/25mm water outlet connector, fixing clips.
Special note: Our charger is the American standard plug of 100-240VAC. You can configure your own adapter plug according to your actual use needs.
Technical specification

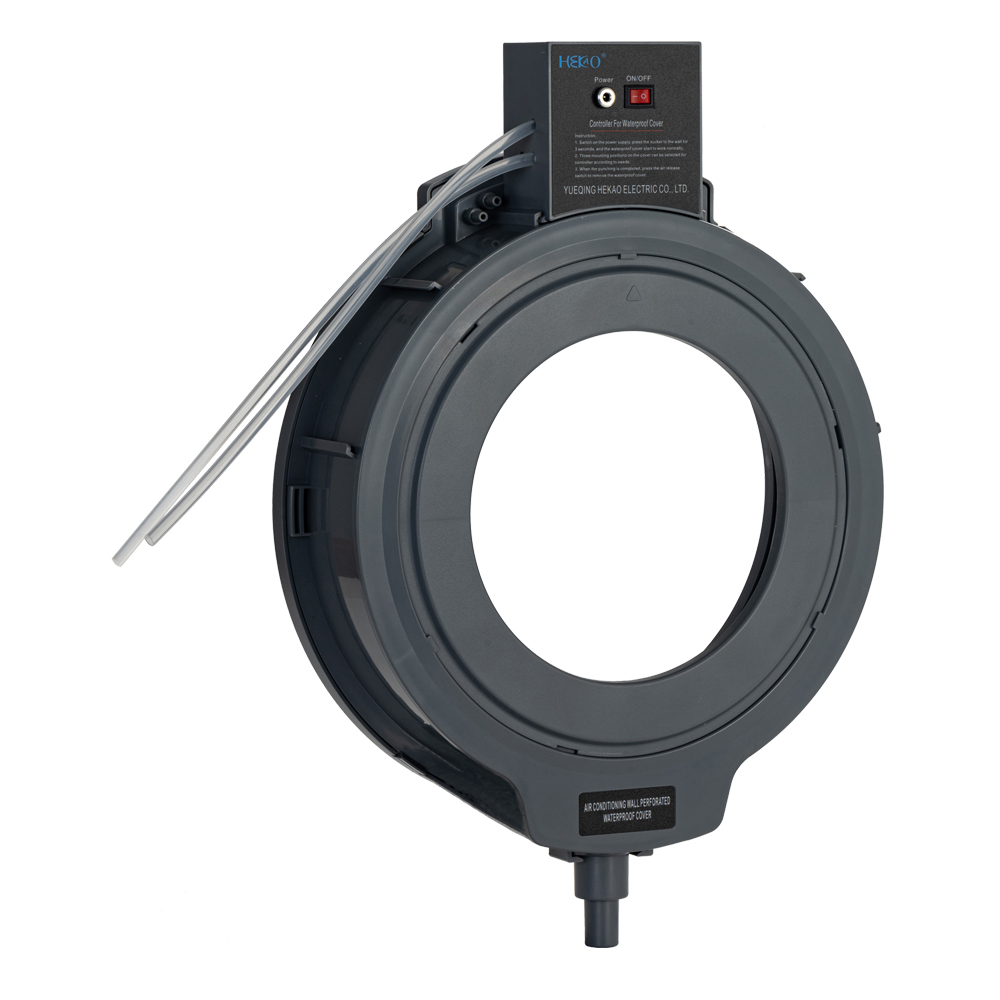

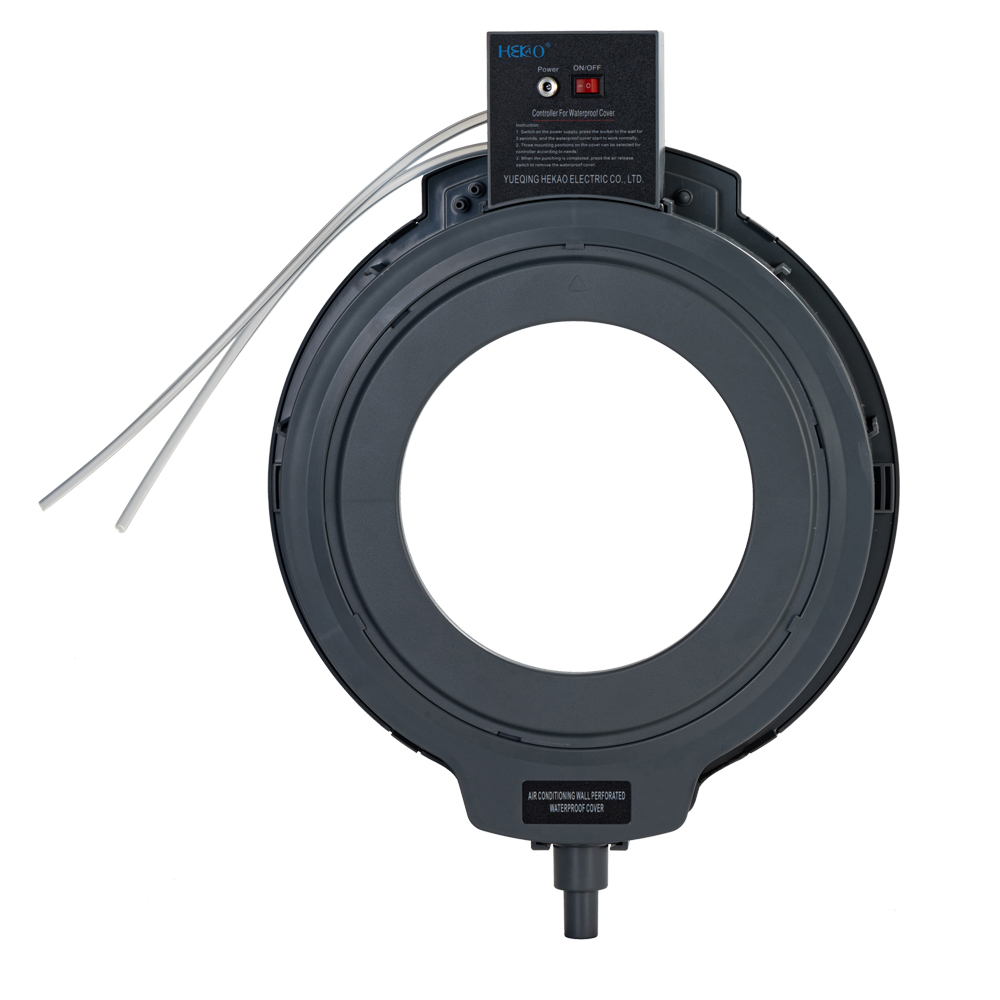

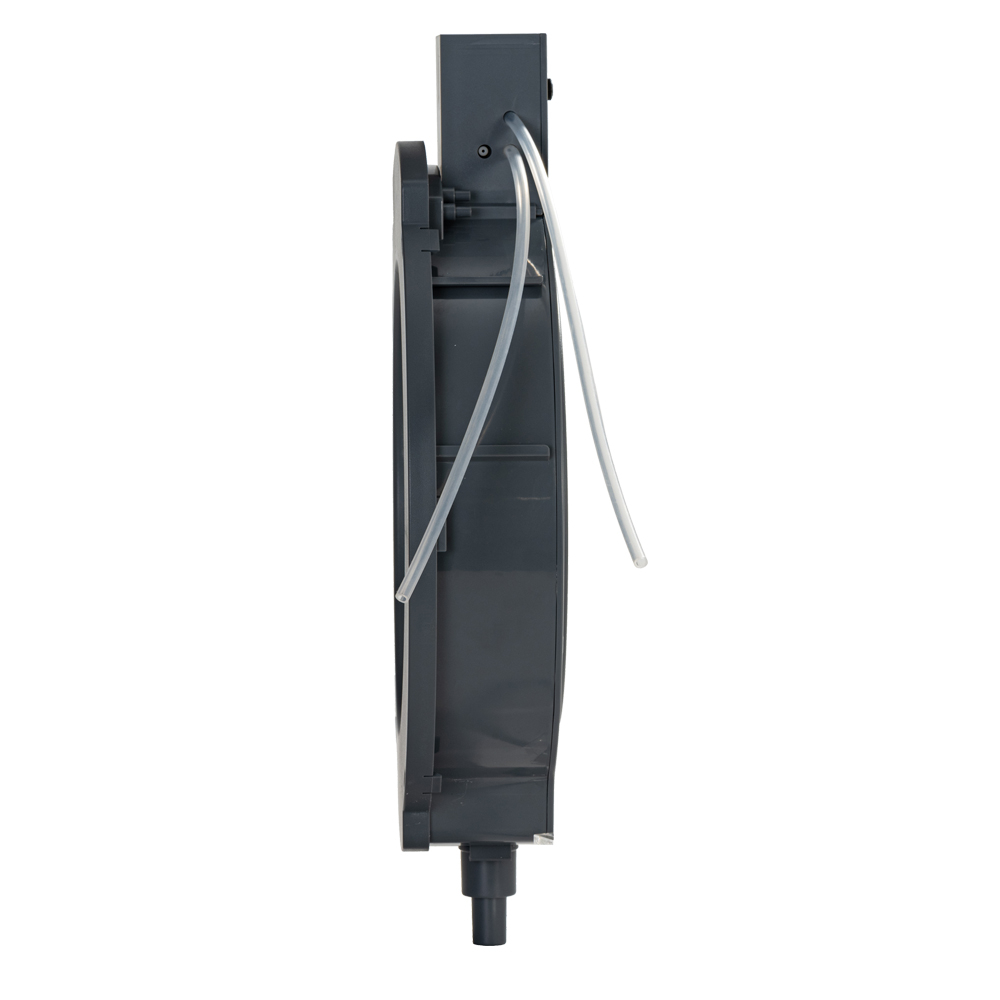

HK-FSZ-160B: Small size Plug-In Type
Model
HK-FSZ-160B
Airflow
5 LPM
STD voltage
12V
Protection features
Short-circuit protection
Bit diameter
160-200mm
Negative pressure
550mmHg
Subject to wall
The product is suitable for the scraping putty smooth wall, scraping white wall, painted wall, oil ICI smooth wall, pasted wall, diatom mud wall and latex paint wall.
The product is not suitable for cracked, breathable and other walls that cannot be adsorbed by vacuum.
Operation steps
Step 1
Turn on the power supply, align the product with the punch position, and place the drain facing down. Turn on the switch to make the product enter the working state. Cling the product to the wall and press tightly for 3 seconds. The product can be fixed on the punching position of the wall because of negative pressure.
Step 2

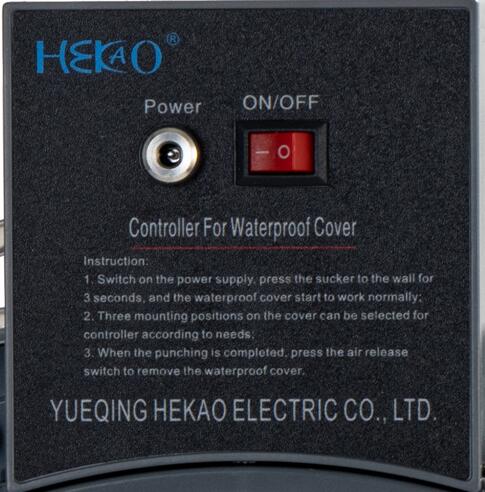

There are three mounting positions on the cover which can be selected for controller according to needs; But the small size product doesn't have two side mounting positions.
Step 3

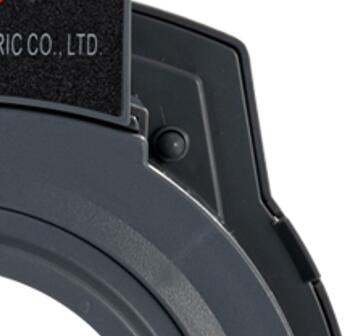

After the punching work is completed, turn off the power and press the vent valve to remove the product.
Caution
1. Do not use the damaged or refitted chargers to charge the controller, only use the original charger to charge. 2. In order to prevent the risk of spontaneous combustion of the product, the followings are prohibited: a). The product is close to the heat source; b). The product is exposed to the sun for a long time; c). The product is stored inside the car; d). The controller of the product is pierced by a sharp object; e). The battery is broken by the external force. 3. Products must not be stored at temperatures above 45 ° C. 4.Keep the product's battery away from open flames or high temperatures to avoid causing an explosion. 5.It is forbidden to disassemble the controller to replace the battery to avoid short circuit occurring in the product. 6.The product controller should be kept in a dry environment. It is forbidden to be put into water or soaked by water to avoid rusting of the motor or short circuit of the circuit board. 7.The product should be charged in the environment of 0~30°C.
Maintenance

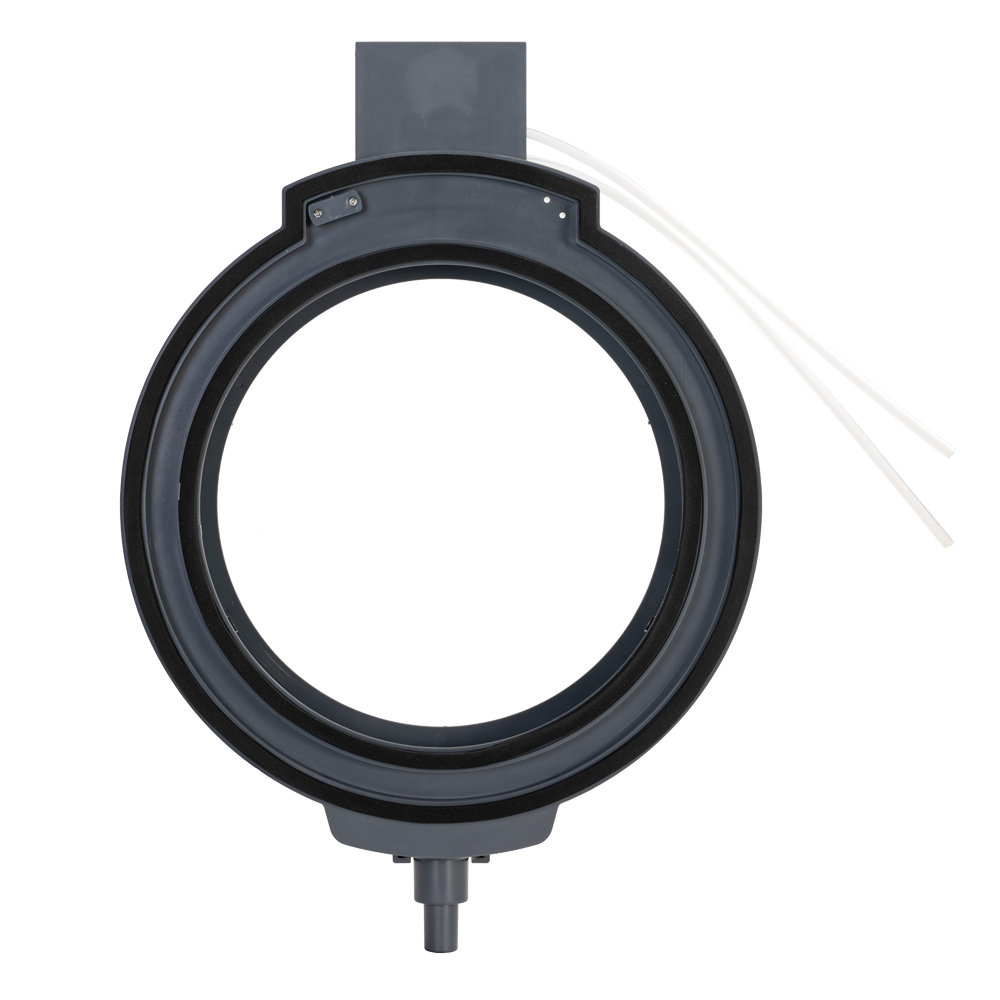

1.Once the bottom protective cover is removed, the side with the rubber rings of the product must face upwards to avoid being squeezed. 2.When cleaning the product, do not completely immerse the product into water. Make the waterproof cover cling to the wall and clean it along the inner wall of the waterproof cover with water.
