Special note: Our charger is the American standard plug of 100-240VAC. You can configure your own adapter plug according to your actual use needs.
Technical specification
HK-FSZ-80A: Small size Charging Type
Model
HK-FSZ-80A
Charge protection voltage
8.5V
Airflow
5 LPM
STD charging current
325mA(0.5C)
STD voltage
7.4 V
Protection features
Short-circuit protection
Bit diameter
82-92mm
Negative pressure
550mmHg
Subject to wall
The product is suitable for the scraping putty smooth wall, scraping white wall, painted wall, oil ICI smooth wall, pasted wall, diatom mud wall and latex paint wall.
The product is not suitable for cracked, breathable and other walls that cannot be adsorbed by vacuum.
Operation steps
Step 1
Align the product with the punch position and place the drain facing down. Turn on the switch to make the product enter the working state. Cling the product to the wall and press tightly for 3 seconds. The product can be fixed on the punching position of the wall because of negative pressure.
Step 2
After the punching work is completed, turn off the power and press the vent valve to remove the product.
Special Instructions:

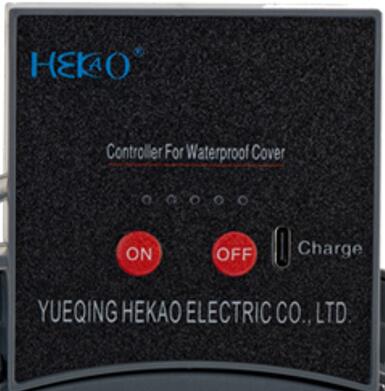

There are 5 signal lights on the controller, the last one is the power indicator. The front four are for battery level displaying. a). When 4 signal lights are all on, it means the battery level is 100%; b). 3 on, means 95%; c). 2 on, means 70%; d). 1 on, means 30%.
When the battery is fully charged, it will automatically turn into a floating charge state.
Caution
1. Do not use the damaged or refitted chargers to charge the controller, only use the original charger to charge. 2. In order to prevent the risk of spontaneous combustion of the product, the followings are prohibited: a). The product is close to the heat source; b). The product is exposed to the sun for a long time; c). The product is stored inside the car; d). The controller of the product is pierced by a sharp object; e). The battery is broken by the external force. 3. Products must not be stored at temperatures above 45 ° C. 4.Keep the product's battery away from open flames or high temperatures to avoid causing an explosion. 5.It is forbidden to disassemble the controller to replace the battery to avoid short circuit occurring in the product. 6.The product controller should be kept in a dry environment. It is forbidden to be put into water or soaked by water to avoid rusting of the motor or short circuit of the circuit board. 7.The product should be charged in the environment of 0~30°C.
Maintenance

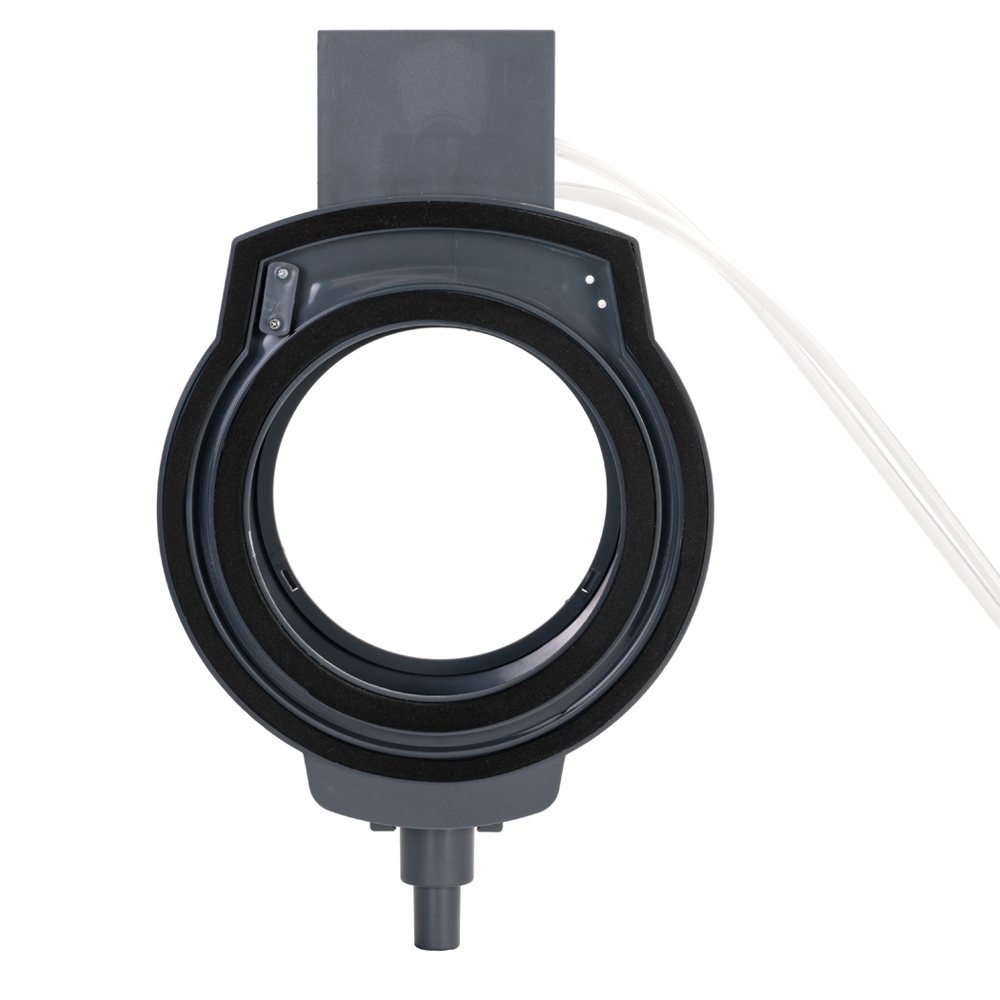

1.Once the bottom protective cover is removed, the side with the rubber rings of the product must face upwards to avoid being squeezed. 2.When cleaning the product, do not completely immerse the product into water. Make the waterproof cover cling to the wall and clean it along the inner wall of the waterproof cover with water.
