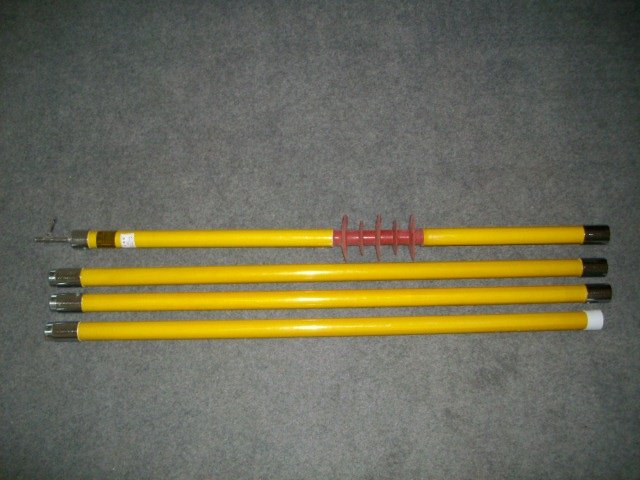

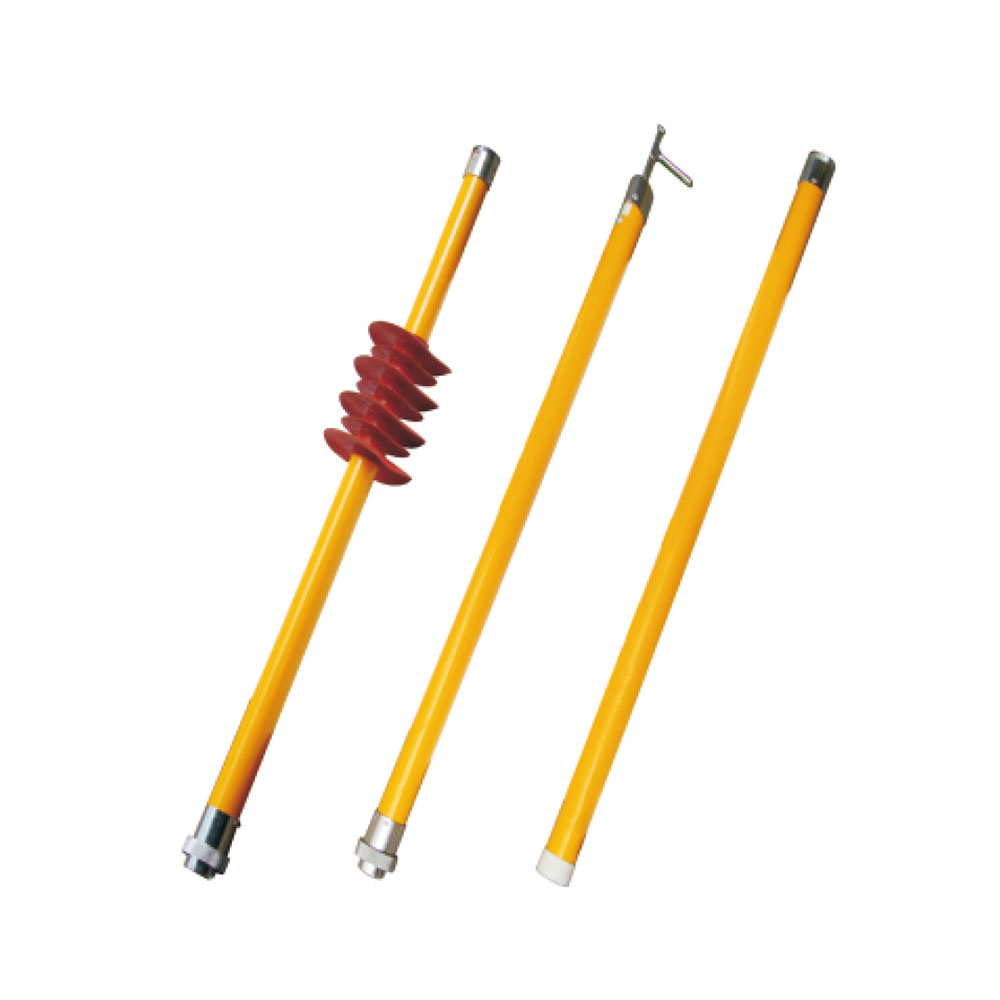

high voltage hot stick

high voltage hot stick

Specifications

Suitable for high voltage isulating switch out operating. with section option.
Excellet quality!
Bottom price!

Feature: The head of the operating lever is one shape. If other head style is required, please make out. The middle connection is screwed type, with outside joint, and the insulated rods are 32MM big insulated tubes (medium).

Model Length Number of section
Withstand Voltage
(KV)
HG-1103F 3m 3x1m 10KV
HG-1104F 4m 4x1m 35KV
HG-1145F 4.5m 3x1.5m 35KV
HG-1105F 5m 5x1m 110KV
HG-1106F 6m 4x1.5m 110KV
