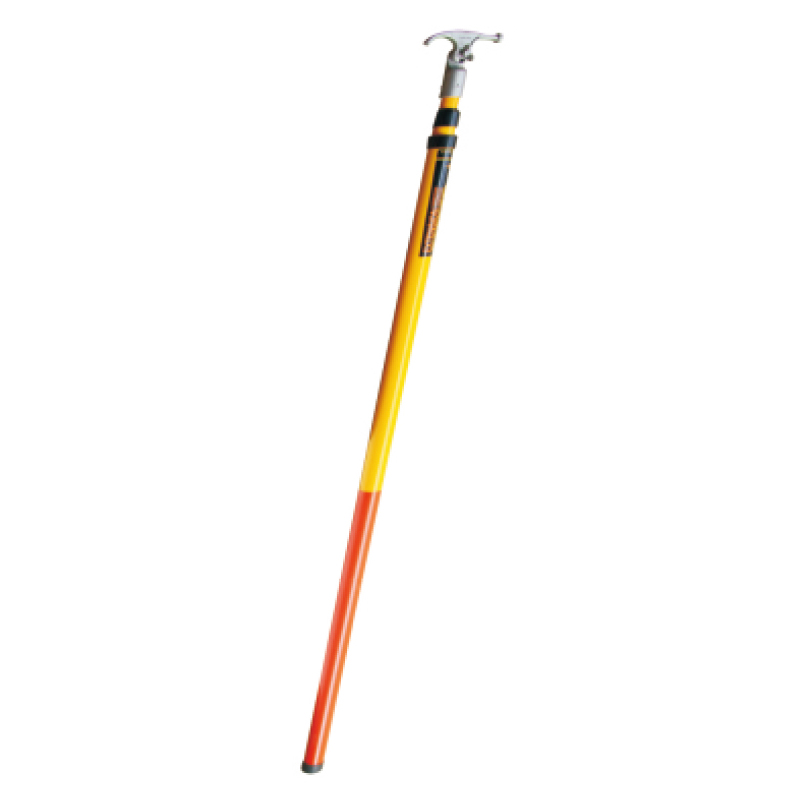

high voltage telescopic fiberglass insulating operating rod

high voltage telescopic fiberglass insulating operating rod

Specifications

Suitable for high voltage switch out operating
1.easy operation
2.flexibly structured
Excellent quality!Bottom price!

telescopic hot stick
1.telescopic pole/extension pole
2.fiberglass/light epoxy resin
3. high voltage, high strength

Excellent quality!

Bottom price!

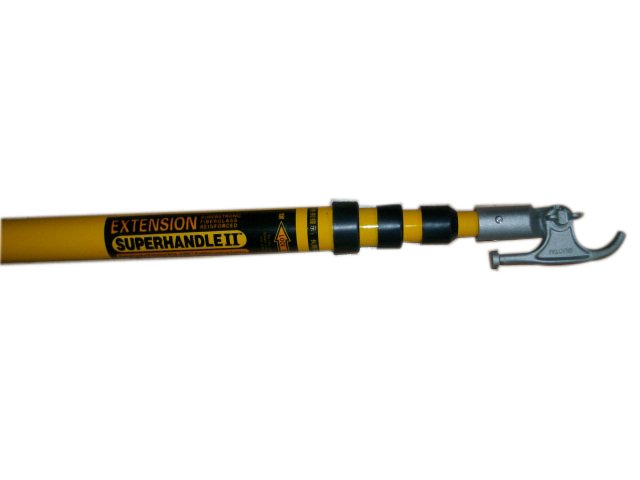

telescopic hot stick

This telescopic hot stick is suitable for high voltage switch out operating. They are produced from epoxy resin, super light, high voltage, high strength. The length and sections can be made depending on your request.

The Telescopic Hot Sticks come equipped with a universal spline end and hot stick probe. In addition, the Telescopic Hot Sticks come with the tip lock operational feature standard. The operator can simply lock the end section into second to last section if necessary to obtain maximum flexural/tensile strength from the extended stick to open/close stubborn equipment. Remember when utilizing the tip lock feature the operator will lose approximately 5 foot of extended reach.

The Telescopic Hot Stick is the newest generation of fiberglass hotstick to enter the electrical market. The stick has been engineered, so additional fiberglass has been added where the highest strength is required and removed where it is not required. The result is a telescopic stick able to withstand the rigors of line operations and still offer the utmost in lightweight for portablility. The outside surface texture provides a positive gripping surface even in wet conditions. All operating buttons are CNC machined from very high strength and water resistant engineered solid polymer rod to provide maximum mechanical strength.

All fiberglass hot sticks come equipped with the Blue Stripe patented feature. Simply align the blue stripes and all button and holes automatically match. No wasted time twisting and turning sections to get buttons to lock into place.

This insulating rod is suitable for high voltage switch out operating. The materia is epoxy.The length and sections can be with your request,so if you need other size,please make out.

Withstand Voltage Total length Section Weight
10KV 3m/4m 3sections 1.24kg/1.378kg
35KV 4.5m 3sections 1.68kg
35KV 6m 3sections 2.48kg
110KV 7.5m 4sections 3kg
110KV 9.5m 4sections 3.8kg
