Specifications

This ajustable hot stick suitable for high voltage switch out operating. The length and sections can be with your request.

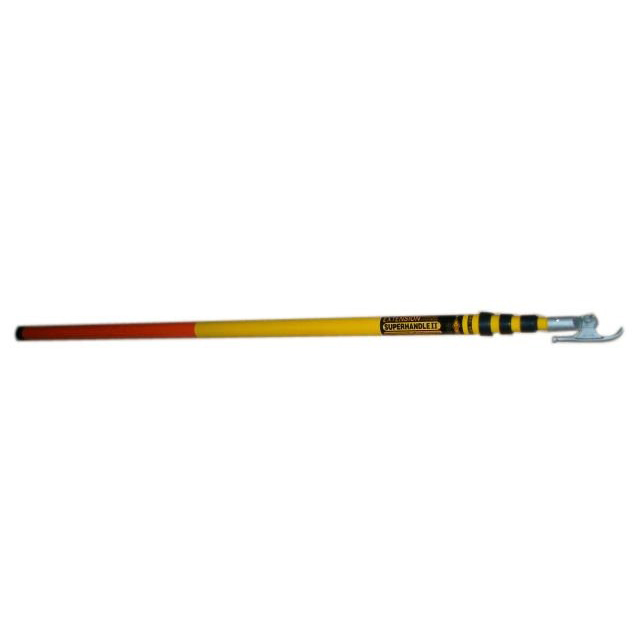

telescopic hot stick / Fiberglass link stick / Fiberglass telescoping operating sticks
1. telescopic pole/extension pole
2. fiberglass/light epoxy resin
3. high voltage
4.Apply to IEC60855
5.100% electrically tested
6.High bending and torsion streng

This telescopic hot stick is suitable for high voltage switch out operating. They are produced from epoxy resin, super light, high voltage, high strength. The length and sections can be made depending on your request.

The Telescopic Hot Sticks come equipped with a universal spline end and hot stick probe. In addition, the Telescopic Hot Sticks come with the tip lock operational feature standard. The operator can simply lock the end section into second to last section if necessary to obtain maximum flexural/tensile strength from the extended stick to open/close stubborn equipment. Remember when utilizing the tip lock feature the operator will lose approximately 5 foot of extended reach.

The Telescopic Hot Stick is the newest generation of fiberglass hotstick to enter the electrical market. The stick has been engineered, so additional fiberglass has been added where the highest strength is required and removed where it is not required. The result is a telescopic stick able to withstand the rigors of line operations and still offer the utmost in lightweight for portablility. The outside surface texture provides a positive gripping surface even in wet conditions. All operating buttons are CNC machined from very high strength and water resistant engineered solid polymer rod to provide maximum mechanical strength.

All fiberglass hot sticks come equipped with the Blue Stripe patented feature. Simply align the blue stripes and all button and holes automatically match. No wasted time twisting and turning sections to get buttons to lock into place.

Model&Withstand Voltage	Total length	Section	Weight
HG-1104K 10KV	3m/4m	3sections	1.24kg/1.378kg
HG-1145K 35KV	4.5m	3sections	1.68kg
HG-1106K 35KV	6m	3sections	2.48kg
HG-1175K 110KV	7.5m	4sections	3kg
HG-1109K 110KV	9.5m	4sections	3.8kg

Tensile force:2200N

Distortion Value:3300N

material:epoxy

length:can be made as your requirement

This ajustable hot stick suitable for high voltage switch out operating. The length and sections can be with your request,so if you need other size,please make out.
